Flowchart Paths and Branches

abstract There can be multiple paths/flows in a Flowchart. This allows grouping of similar test flows together.

New Paths can be added in 2 ways:
  1. As a branched subpath to another path
  2. As a new path starting from the Start node.

Branch without Condition

Many test flows start off with the same steps and then start diverging later. Such flows can be designed using branches.
Branches reduce duplication and give a clear view of the various flows possible from a particular stage in the application.
Sub-Labels can be added to a path at any point to give some context or description to the branched flow.

Controlling Branch Flow with Sub-Label Grouping

Sub-label groups are used to ensure that paths follow specific branches only.
A sub-label group has two parts - a group name and a value.
It is written in the form <group_name>:<value> inside a Sub-Label node.
info Sub-label Groups are useful when a flowchart branches, converges and then branches again.

In the example below, there is a setup for two types of products - digital and physical, some common actions and then specific verifications for digital and physical. Here we want to ensure 2 things:
  1. For a digital product, shipping address is not needed.
  2. For a physical product, the shipping address is needed.
Adding the sub-label groups ensures that when Product Type sub-label is encountered, the Product Type: Physical will only go through the second Product Type: Physical and not through Product Type: Digital

Branch with Condition

Some paths are only possible for specific data or only if some specific prior setup has been done.
Conditions can be used to enforce separation of such paths.

New Path from Start Node

An independent path can be created from the Start node.
Such paths are related in context, but do not need to repeat the steps from another path.

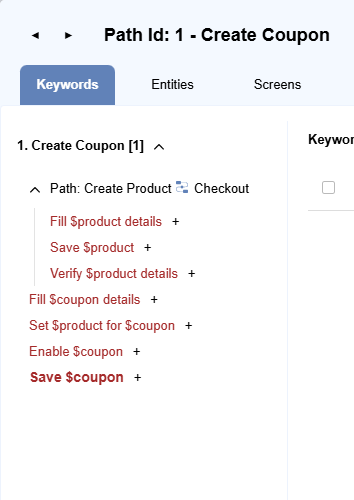

View All Paths - Table View

To view all the branched paths in a table view, click on Table View button on the top of the flowchart.
